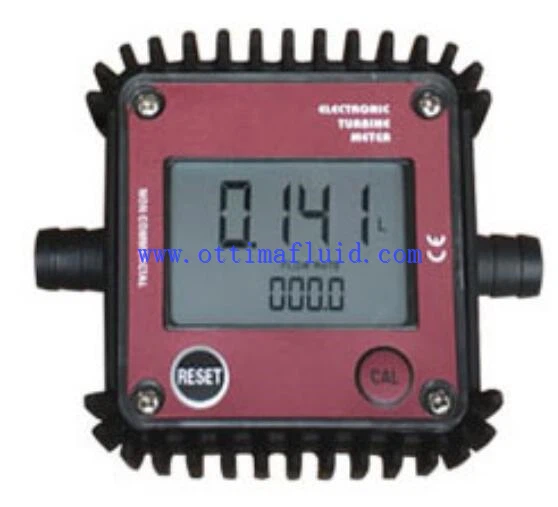

K24 Flow Meter

The K24 turbine flowmeter is a type of flowmeter that utilizes a turbine rotor to measure the flow rate of a fluid. It is commonly used in industrial applications to measure the flow of liquids such as water, diesel, gasoline, and chemicals.







1. Body: It houses the internal components of the flowmeter and provides the connection points for fluid inlet and outlet.

2. Display/Indicator: K24 flowmeter include an integrated display to show the flow rate, total volume, and other parameters.

3. Connectors: The flowmeter is equipped with connectors or fittings for easy installation in a fluid flow line.

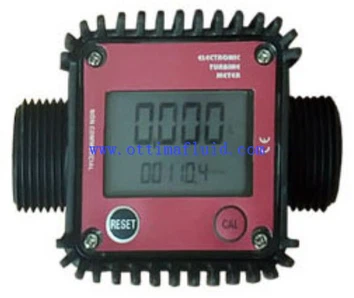

Product	external thread K24 flow meter
Medium	gasoline, water, diesel,chemicals,Urea,methanol
import and export	DN15-DN25 Thread
Measurement accuracy	±1%
Repeatability	±0.5%
MAX Working pressure	10BAR
Operating Voltage	3V
Standby time	2 years
Flow range	DN15: 1.5-10L/MIN DN25:10-120L/MIN
Single count	0.00-9999.9
Total cumulative number	0.00-999999.9
unit of measurement	Liter/L, gallon/GAL, pint/PTS, quart/QTS
Single measurement reset and start	RESET











The K24 turbine flowmeter finds applications in various industries, including:

Fuel Monitoring: It is commonly used in automotive, construction, agriculture, and other industries to monitor fuel consumption and optimize efficiency.

Chemical Transfer: The flowmeter is suitable for measuring the flow of chemicals
