Vapor Adapters

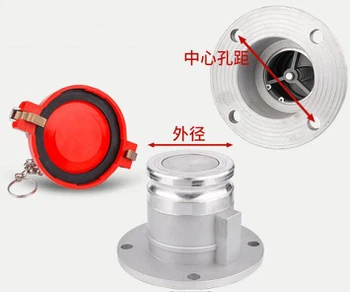

Vapor Adapters is installed on the bottom side of the tank truck. When the oil and gas recovery is required for the tank truck to be filled with oil, the oil and gas delivery elbow is used to connect to the male end of the vapor adaptor. After unloading the oil, cover the male end of the oil and gas recovery adaptor with the oil and gas recovery cap to prevent the escape of oil and gas and prevent water, dust, etc.



Vapor Adapters is designed to mate with vapor recovery elbow.

It is for returning gasoline vapor to the fuel tank truck during fuel delivery to an underground tank.





Part No.	Connection way	Pic
HSF-OT01	Threaded connection
HSF-OT02	Flange connect
HSF-OT03	Ball valve connection





1. The valve body is compact and light in structure, with good gas flow,suitable for gas circulation in the oil tank;

2. labor-saving and convenient pneumatic control;

3. The unique piston design ensures the air flow, and the pressure inside the valve body will be minimized;

4. Internal opening to prevent leakage caused by high pressure caused by tank truck tipping;

5. High-quality die-cast valve body and internal components

6. High performance and strong reliability;

7. Installed on the oil and gas recovery system, it can control the opening and closing of the oil and gas recovery valve.



Vapor Adapters is also used in the gas storage tank return system of primary oil gas recovery gas station





1. Make sure that the vapor recovery system is properly installed and operational.

When you are ready to use the system, remove the vapor recovery cap from the adapter by gently pulling it off.

2. Insert the adapter into the fuel tank's vapor recovery port. Make sure that it is securely in place.

Once the adapter is in place, connect the other end of the hose to the fuel delivery truck.

Turn on the fuel pump and begin filling the tank. The vapor recovery system will automatically start working to capture any vapors that are generated during the filling process.

When the fueling is complete, turn off the pump and disconnect the hose from the adapter.

3. Finally, replace the vapor recovery cap on the adapter to prevent any vapors from escaping when it is not in use.

It's important to note that the specific steps for using a vapor recovery system may vary depending on the specific equipment being used. Always refer to the manufacturer's instructions for proper use and maintenance of the equipment. Additionally, make sure to follow all applicable safety guidelines and regulations when using a vapor recovery system.
