Turbine Flowmeter

Turbine flowmeter is a type of flowmeter that measures the flow rate of a liquid or gas by using a turbine to convert the energy of the flowing fluid into rotational energy. The rotational speed of the turbine is proportional to the flow rate of the fluid, and this speed is measured using electronic sensors.

Send Inquiry

Description

Turbine electronic flowmeters are commonly used in a variety of industries, including oil and gas, chemical, and water treatment. They offer high accuracy and reliability, and can measure a wide range of flow rates. They are also relatively easy to install and maintain, and can be used in both inline and insertion configurations.

Turbine flowmeter Feature

1), Accurate measurement

2), Widely used

3), Easy to operate

4), Small size

5), Large flow

6), Durable

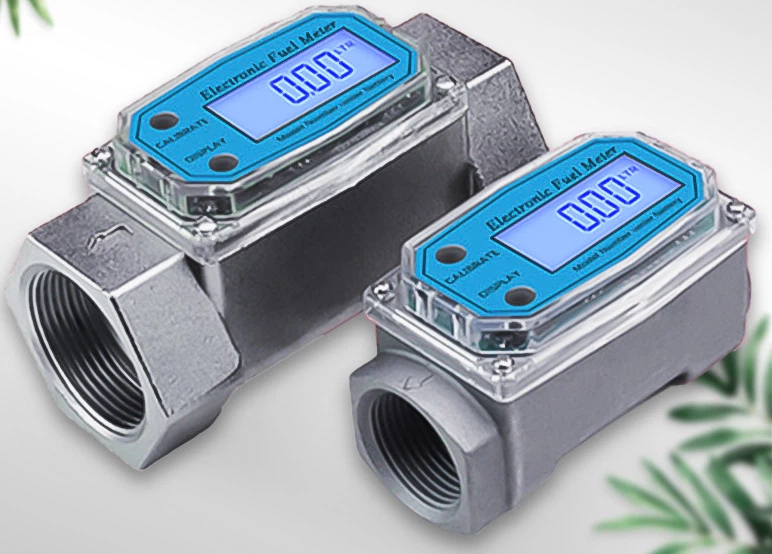

product-772-554

Turbine flowmeter	WL-25	WL-40	WL-50
DN	1’’	1.5’’	2’’
Material	Aluminum/stainless steel
Medium	Diesel, Kerosene, Gasoline, Water, Methanol
Flow	8-120L/m	20-280L/m	50-400L/m
Measurement accuracy	±0.5%	±0.5%	±0.5%
Repeatability	±0.3%	±0.3%	±0.3%
Max working pressure	20 Bar	20 Bar	20 Bar
Working temp.	-20-60°C	-20-60°C	-20-60°C
single count range	9999.9	9999.9	9999.9
Cumulative metering range	999999	999999	999999
Weight	0.35	0.5	1

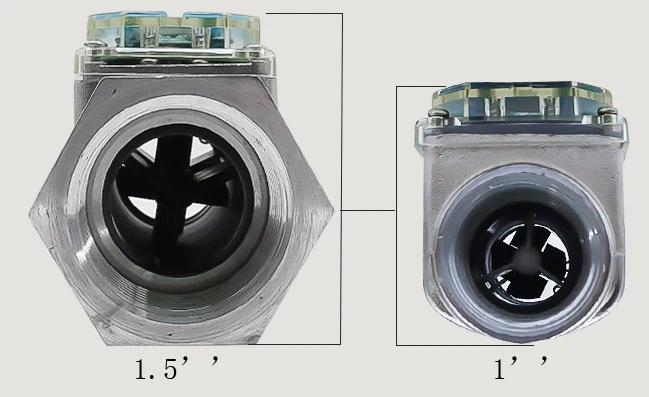

product-649-397

product-773-603

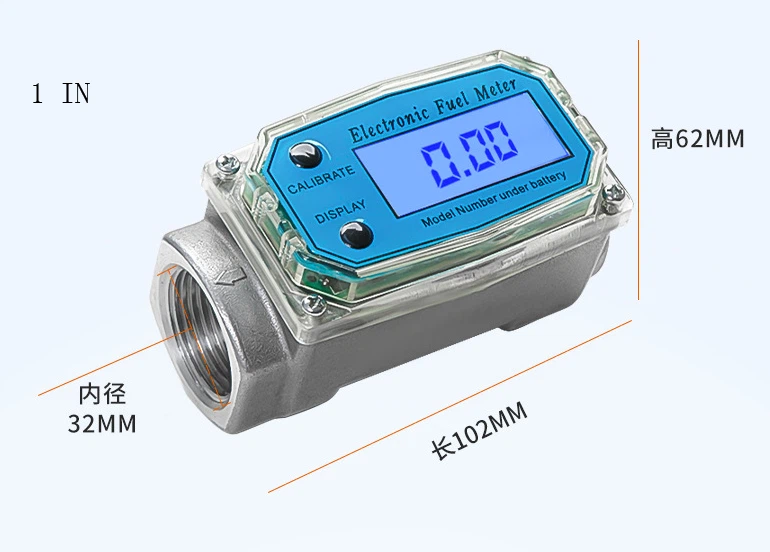

product-770-552
