LPG Loading Pump
The YQB series LPG loading pump is primarily utilized for the transportation of liquefied petroleum gas, propylene, liquid ammonia, as well as other volatile liquids with similar characteristics or petroleum products. It is also suitable for irrigation purposes. The YQB series LPG loading pump...
Description
The YQB series LPG loading pump is primarily utilized for the transportation of liquefied petroleum gas, propylene, liquid ammonia, as well as other volatile liquids with similar characteristics or petroleum products. It is also suitable for irrigation purposes.
The YQB series LPG loading pump is a positive displacement vane pump known for its advanced structure.
It features a stator surface composed of a composite curve and is equipped with mechanical seals on both ends. The fixed ends are sealed with 'O'-rings, and the rotating components incorporate a combination of metal and non-metallic materials. This design ensures the pump's safety, reliability, and functionality, making it an excellent choice for various applications.

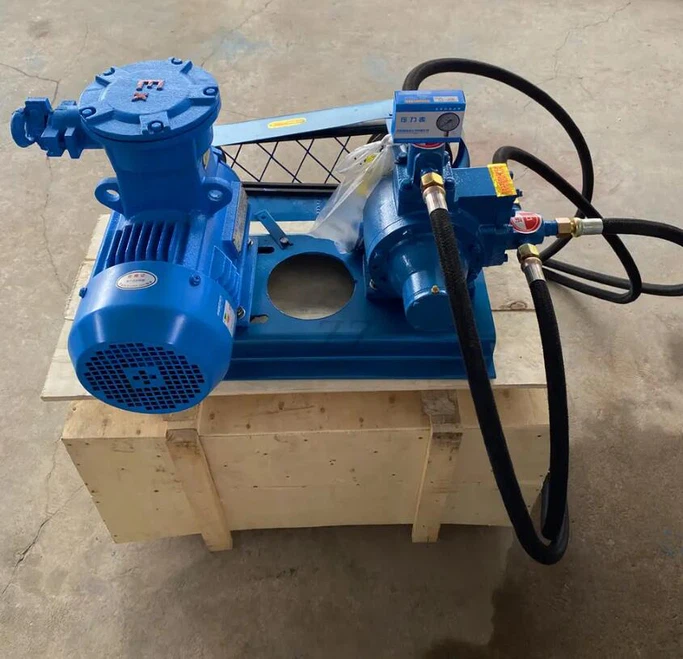

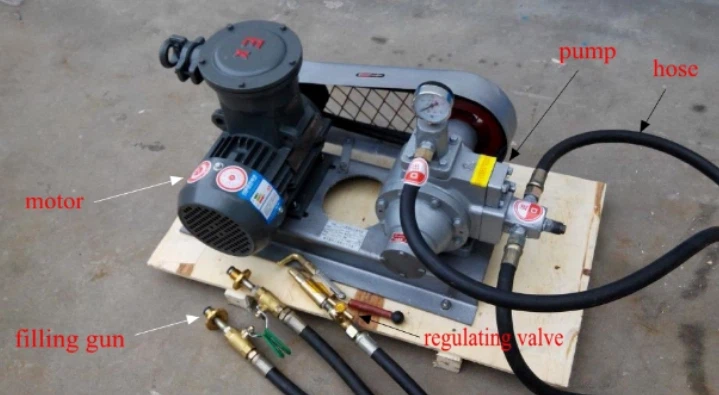

LPG loading pump is with filling gun and hose, loading lpg gas from cylinder to cylinder.
Techinical specification
|
Model |
Speed n |
Flow Q |
Pressure difference ΔP |
Working pressure P |
Power N |
Inlet size/Outlet size |
Temperature ℃ |
|
YQB1-5 |
600r.P.m |
1 m3/h |
0.5MPa |
2.0MPa |
1.5KW |
1'' |
+40-40 |
|
YQB2-5 |
600r.P.m |
2 m3/h |
0.5MPa |
2.0MPa |
1.5KW |
1'' |
+40-40 |
|
YQB3-5 |
600r.P.m |
3 m3/h |
0.5MPa |
2.0MPa |
1.5KW |
1'' |
+40-40 |
|
YQB5-5 |
780r.P.m |
5 m3/h |
0.5Mpa |
1.6Mpa |
2.2KW |
1'' |
+40-40 |
|
YQB10-5 |
780r.P.m |
10m3/h |
0.5MPa |
1.6MPa |
5.5KW |
2'' |
+40-40 |
|
YQB15-5 |
780r.P.m |
15m3/h |
0.5Mpa |
1.6Mpa |
5.5kw |
2'' |
+40-40 |
|
YQB25-5 |
600r.P.m |
25m3/h |
0.5MPa |
1.6MPa |
11KW |
3'' |
+40-40 |
|
YQB35-5 |
780r.P.m |
35m3/h |
0.5Mpa |
1.6Mpa |
11kw |
3'' |
+40-40 |
|
YQB50-5 |
600r.P.m |
50 m3/h |
0.5MPa |
1.6MPa |
15KW |
4'' |
+40-40 |
The color can be pinted as customer's need.
