Description

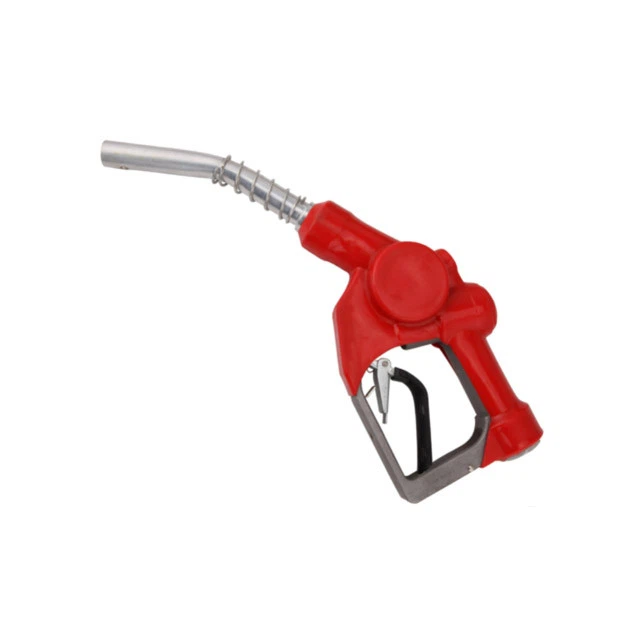

OME-35 automatic fuel nozzle is with whole spouts to avoid leakage after long time. The main valve is sealed in two layers to avoid being difficult to run the nozzle when working pressure is too high. The nozzle can be controlled in three grades only with one hand.
specification
Model Number: OME-35
Flow Range:60L/min
Outlet Size:1/2"/3/4"
Intlet Size:3/4"
Medium: Diesel/Gasoline/Kerosene
Material:Aluminum Alloy
Color of Insulator: red/green/blue/yellow/black
Specification
|
Model |
OME-35 |
|
Inlet |
BSPF3/4''、BSPF1''、BSPT3/4''、BSPT1''、NPT3/4''、NPT1'' |
|
Outlet |
15/16'' |
|
Flow rate |
0~60L/min |
|
Work Pressure |
0.18~0.22Mpa |
|
Package |
20pcs/carton |
|
Dimension |
61.5×41.5×37.5cm |
|
Gross Weight |
28kg |
|
Net weight |
24kg |
Hot Tags: fuel pump nozzle, China fuel pump nozzle manufacturers, suppliers, factory, Manual Fuel Nozzle, Vapour Recovery Dispensing Nozzles, Automatic Dispensing Nozzle, Fuel Nozzle, Automatic Fuel Nozzle, Fueling Nozzle With Flowmeter
