A Comprehensive Guide To Flowmeter Selection: From Media To Pipe Size—Everything You Need To Know

In industrial settings, it is not uncommon to find two flowmeters installed in series on the same pipeline showing significantly different readings. Upon inspection, the models prove correct, the calibration is valid, and the installation follows the design drawings-yet the root cause lies in the initial selection phase: the meter size was chosen based on the pipe diameter rather than the actual operating flow rate.
Flowmeters represent the most diverse category of instrumentation. Technologies such as differential pressure, electromagnetic, vortex, turbine, ultrasonic, Coriolis, positive displacement, and variable area (rotameter) each have specific operational boundaries and clear limitations. Getting the selection right ensures years of trouble-free operation; conversely, a poor initial choice cannot be redeemed, regardless of the device's precision rating or brand prestige. This guide unfolds according to the actual selection order on site: first determine the purpose and accuracy, then test the medium, then calculate the diameter, check the installation, calculate the cost, and finally settle on the specific type and typical working conditions.

I. Define the Purpose: What are you measuring, and what level of accuracy is required?
The first step in selection is not to examine the pipeline, but to clearly define the objective of the flow measurement. For the same pipeline, different applications can demand accuracy levels that differ by two orders of magnitude.
• Trend monitoring and interlocks: Used for tasks such as verifying pump operation or detecting a loss of flow; an error margin of 2%–5% is typically sufficient, offering the greatest flexibility in device selection.
• Process control: Used within control loops; an accuracy of ±1% to ±1.5% is generally adequate, with the focus shifting toward response speed and long-term stability.
• Internal accounting and energy consumption assessment: Used for tracking usage within workshops or teams; typically requires an accuracy of ±1%.
• Custody transfer and legal metrology: Used for external billing of commodities like steam, natural gas, or petroleum products; these applications generally require an accuracy class of 0.2–0.5, along with mandatory calibration in accordance with official standards and periodic re-verification.
Higher accuracy is not always better. A 0.2-class meter often entails stricter installation requirements, a higher price tag, and more frequent calibration-using such a device where only trend monitoring is needed is simply a waste of resources. Conversely, if you use a Class 1.5 meter for trade settlement, the measurement error translates directly into a monetary loss-which, over the course of a year, could far exceed the initial price difference between meters. Defining the intended application first will essentially dictate the required accuracy class.
II. Understand the Medium: The Deciding Factor for Feasibility
The characteristics of the medium determine which measurement principles are fundamentally unviable. This is the most frequently overlooked step in the selection process-and the one most likely to lead to failure. There are six key aspects to clarify:
Phase. Is the medium a liquid, gas, steam, or a two-phase flow? For steam, you must distinguish between saturated and superheated states and determine whether temperature and pressure compensation are required. Liquids containing entrained gas can cause unstable readings in electromagnetic or ultrasonic flowmeters.
Electrical Conductivity. Electromagnetic flowmeters can only measure conductive liquids; typically, a conductivity of at least 5 μS/cm is required. For media with low conductivity (such as pure water or certain types of condensate), a threshold of 20 μS/cm may be necessary, or alternative measures must be taken. Electromagnetic flowmeters cannot be used for oils, gases, or steam.
Viscosity. Highly viscous liquids (e.g., those with a kinematic viscosity greater than 30 mm²/s-often described on-site as "very thick") are unsuitable for turbine or vortex flowmeters, as the medium may lack the force to drive the impeller or fail to generate a stable vortex. For such media, Coriolis, positive displacement, or target-type flowmeters are more appropriate.
Solids and Fibers. For slurries containing particles or fibers, prioritize electromagnetic flowmeters (equipped with wear-resistant liners) or designs without internal flow obstructions. Turbine and positive displacement meters are prone to jamming or wear, while the vortex-shedding element in a vortex flowmeter can easily become entangled.
Corrosivity. Since the medium comes into contact with the liner, electrodes, and seals, the materials used must be compatible with it. Common liner materials include neoprene, polyurethane, PTFE, and PFA; electrode materials include stainless steel, Hastelloy, titanium, and tantalum. Choosing the wrong material for a highly corrosive medium can lead to leaks within just a few months.
Hygienic and Special Requirements. In the food and pharmaceutical industries, hygienic connections and cleanable designs are essential; electromagnetic, Coriolis, or ultrasonic flowmeters are generally the preferred choices. Once these points are fully addressed, the number of viable options will narrow down significantly, making subsequent selection much easier.
III. Determining Pipe Size: Use the typical flow rate for selection, and the minimum flow rate for verification.
Pipe size is not determined by the existing pipe diameter, but by the flow rate. For a given DN100 pipe, you might need to reduce the diameter if the flow is low, or increase it if the flow is high; the decisive factor is the flow velocity.
First, establish an appropriate flow velocity. If the velocity is too low, measurement errors increase, and the pipe becomes prone to sedimentation and clogging. If it is too high, pressure loss and wear rise, and noise may interfere with the measurement. Common engineering recommendations are: 1–3 m/s for liquids (0.5–1 m/s for high-viscosity media; 1–2 m/s for media containing solids); 10–30 m/s for gases (10–20 m/s for low-pressure gases); and 20–40 m/s for steam (up to 30–60 m/s for superheated steam).
Next, calculate the pipe size. Determine the required internal cross-sectional area based on the typical flow rate and the target velocity, derive the internal diameter, select the nearest standard pipe size, and then calculate the actual velocity to ensure it falls within the appropriate range. For example, if the medium is water with a typical flow of 30 m³/h, a maximum of 45 m³/h, and a minimum of 8 m³/h, and you target a velocity of 2.5 m/s, the calculated internal diameter is approximately 65 mm-so you would choose DN65. In this case, the typical velocity would be about 2.3 m/s, and the maximum velocity about 3.4 m/s-both well within the acceptable range. If you were to simply choose a DN100 pipe instead, the typical velocity would drop to only about 1.1 m/s, and at the minimum flow rate, it would fall to as low as 0.3 m/s-at which point the measurement accuracy would begin to drift.
Finally, verify using the turndown ratio (rangeability). This step is the most easily overlooked: the flow meter must be capable of covering both the maximum and minimum flow rates. Differential pressure (orifice plate) flowmeters typically have a turndown ratio of only 3:1 to 4:1; vortex and turbine flowmeters offer approximately 10:1 to 20:1; electromagnetic flowmeters can reach 20:1 to 100:1; and ultrasonic flowmeters generally provide 20:1 to 40:1. In the example mentioned earlier, the ratio between the maximum and minimum flow rates is 5.6:1-a range well within the capabilities of electromagnetic or ultrasonic flowmeters, whereas an orifice plate would be essentially unsuitable. In many field applications, only a "maximum flow rate" is specified; it is only when low-flow conditions occur that the readings reveal underlying issues.
IV. Consider Installation Conditions: Straight Pipe Sections, Vibration, and Orientation

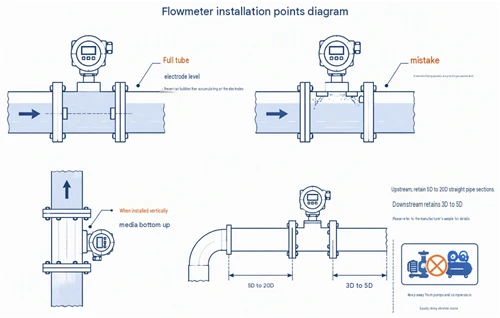

The accuracy of the same flowmeter can vary significantly-by a factor of several times-depending on the quality of its installation. Installation requirements must be verified during the selection phase; do not wait until the construction stage to discover that there is insufficient space.
Straight Pipe Sections: Most flowmeters that rely on specific flow regimes require a length of straight pipe both upstream and downstream to stabilize the flow velocity profile. If there are elbows, valves, or pipe-diameter transitions upstream, longer straight sections are typically required. Common requirements are summarized in the table below; however, always refer to the manufacturer's specific documentation. Checking the straight pipe requirements first can often explain more than half of all "inaccurate measurement" issues.

Vibration. Vortex and Coriolis flowmeters are sensitive to pipeline vibration. If installed at the outlets of pumps or compressors, or along pipe sections subject to significant vibration, their readings may fluctuate periodically. In such cases, one should either switch to a flowmeter type with better vibration resistance or install additional supports to isolate the device from the vibration source. While a key advantage of the Coriolis flowmeter is that it does not require specific straight-pipe runs, vibration is its primary weakness.
Installation Orientation. Electromagnetic flowmeters require a full pipe; they can be installed either horizontally or vertically. For vertical installation, it is recommended that the medium flows from bottom to top to prevent gas accumulation in the upper part of the pipe. When using a vortex flowmeter to measure gases, the vortex-shedding element must be positioned vertically; when measuring liquids, care must be taken to avoid the accumulation of gas bubbles. For differential-pressure flowmeters, the positioning of pressure-sensing ports depends on the medium: for gases, they should be located on the top of the pipe; for liquids, on the bottom or side; and for steam, on the side, equipped with condensation pots.

Other Environmental Conditions. In hazardous areas, it is essential to select the appropriate explosion-proof type and verify the explosion-proof rating. In environments with strong electromagnetic interference, proper shielding and grounding are necessary-electromagnetic flowmeters, in particular, rely heavily on reliable grounding. For installations in high-temperature or high-humidity environments, or outdoors, one must also verify the ingress protection (IP) rating and the allowable ambient temperature range.

V. Factor Pressure Loss into Costs: An Ongoing Annual Expense
The purchase price is only one component of a flowmeter's total cost. Obstruction-type flowmeters, such as orifice plates, generate a differential pressure by restricting flow; this results in a permanent pressure loss, forcing pumps to perform extra work continuously. This is an annual expense that is all too easily overlooked.
A simplified estimation can be made using the following relationship: Shaft Power (kW) ≈ Pressure Loss (kPa) × Flow Rate (m³/s).
Consider a typical scenario: a water pipeline with a flow rate of 0.3 m³/s (approx. 1,080 m³/h) and an orifice plate causing a 30 kPa pressure loss. This equates to a shaft power of approximately 9 kW. Assuming 6,000 hours of operation per year and an electricity cost of 0.6 RMB/kWh, the annual electricity expense would be roughly 32,400 RMB. If the pressure loss increases to 100 kPa, the shaft power rises to about 30 kW, resulting in an annual electricity cost of approximately 108,000 RMB. Note that this represents only the theoretical shaft power; actual electrical consumption will be even higher when accounting for the efficiencies of the pump and motor.
Including this factor in your evaluation often changes the conclusion: electromagnetic and ultrasonic flowmeters have virtually zero pressure loss, and Coriolis flowmeters have significantly lower pressure loss than orifice plates. While they may have a higher initial purchase price, they offer savings through lower long-term energy consumption. For large-diameter pipelines in continuous operation, the difference in electricity costs over just a few years can easily offset the difference in equipment purchase prices. A true "total life-cycle cost" analysis must consider five elements: procurement, installation, verification/calibration, maintenance and spare parts, and the energy costs associated with pressure loss.

VI. An Overview of Six Mainstream Flowmeter Types
Differential Pressure Flowmeters (Orifice plates, nozzles, Venturi tubes): These represent the most mature technology, supported by comprehensive standards. They are capable of withstanding high temperatures and pressures, can be manufactured in very large diameters, and are relatively inexpensive. Their drawbacks include high pressure loss, a limited turndown ratio (typically 3:1 to 4:1), and moderate accuracy (±1% to ±1.5%). Furthermore, long-term use can lead to wear on the edges of an orifice plate or clogging of the pressure-sensing ports, both of which introduce measurement errors. Suitable for applications such as steam, large-diameter gas flow, or high-temperature media, where pressure loss is not a concern and high precision is not strictly required.
Electromagnetic flowmeters: These feature no flow-obstructing components, resulting in virtually zero pressure loss. They offer an accuracy of ±0.2% to ±0.5% and a wide turndown ratio. With a variety of liner and electrode materials available, they are highly resistant to corrosion and wear. However, they have clear limitations: they can only measure conductive liquids; the presence of gas bubbles or deposits on the electrode surface can affect readings; and they require reliable grounding. They are the preferred choice for sewage, sludge, acid/alkali/salt solutions, pulp, and mineral slurries.
Vortex flowmeters: These contain no moving parts, feature a simple structure, and require minimal maintenance. By integrating temperature and pressure sensors, a single unit can perform temperature and pressure compensation, making them highly convenient for steam measurement. Their drawbacks include sensitivity to vibration, a requirement for longer straight pipe runs, an inability to measure at very low flow velocities, and the risk of the vortex-shedding element becoming clogged by solids. They are a primary choice for measuring saturated and superheated steam.
Turbine flowmeters: Known for high accuracy, rapid response, and high-pressure resistance, these are suitable for clean, light petroleum products, natural gas, and water. Because they contain an internal rotating impeller, impurities or wear can directly alter the meter factor; therefore, they demand high fluid cleanliness, effective filtration, and periodic calibration.
Coriolis mass flowmeters: These measure mass flow directly, remaining unaffected by temperature, pressure, or viscosity. They can simultaneously output density and temperature data, achieving an accuracy of ±0.1% to ±0.2%, and generally require no straight pipe runs. The trade-offs include a high price point, a typical maximum diameter of DN300, sensitivity to vibration, and the potential for measurement fluctuations if gas is present in the liquid. They are well-suited for custody transfer (trade settlement), high-viscosity media, and precision chemical dosing.
Ultrasonic flowmeters: These cause no pressure loss and can be installed using external clamp-on sensors. For large-diameter pipes, they are significantly more cost-effective than electromagnetic flowmeters of the same size and are capable of measuring non-conductive liquids. These devices rely on the propagation of sound waves through a fluid; their performance can be disrupted by factors such as gas bubbles, solid particles, or scale buildup on the inner pipe walls. The transit-time method is suited for relatively clean media, while the Doppler method is better for media containing suspended solids. Multi-path ultrasonic flowmeters are frequently used for the custody transfer (commercial metering) of water or natural gas in large-diameter pipelines.
Two other types remain common for low-flow applications or specific scenarios: variable-area (rotameter) flowmeters-which feature a simple design, intuitive readings, and a low price point-are well-suited for on-site visual indication or low-flow applications like purge gas, though their accuracy is generally moderate. Positive-displacement flowmeters (such as those using lobed rotors or elliptical gears) offer high accuracy for measuring viscous, clean liquids and are often used in the custody transfer of petroleum products; however, the medium must be clean, necessitating the use of a filter.
The table below summarizes the key parameters for these six mainstream flowmeter types, allowing for quick comparison.

VII. Matching Equipment to Typical Operating Conditions
Synthesizing the points discussed in the previous sections, the selection process for common operating conditions tends to converge on a few standard options. The reference table below serves as a starting point; however, for any specific project, it is essential to re-evaluate the selection by accounting for the specific characteristics of the medium, pressure ratings, and installation conditions.

For any given operating condition, there is often more than one viable solution. For instance, in large-diameter water supply applications, both electromagnetic and multi-path ultrasonic flowmeters can be used; the final choice depends on the initial budget, the availability of sufficient straight-pipe runs on-site, and maintenance capabilities. Similarly, for steam measurement, both vortex and differential-pressure (DP) flowmeters are options-vortex meters offer lower pressure loss and a wider turndown ratio, while DP meters are better suited for high-temperature/high-pressure environments and are generally more cost-effective. No solution is inherently superior; the best choice is simply the one that aligns most effectively with the specific on-site conditions.
VIII. Six Common Pitfalls
Providing only the maximum flow rate while omitting the minimum. If the meter size is determined solely based on the maximum flow, it may fail to provide accurate measurements during low-flow conditions. Always clarify the typical, minimum, and maximum flow rates before selecting a device.
Matching the meter size directly to the pipe diameter. While the pipe diameter is determined by the process design, the flowmeter's bore size must be calculated based on the flow rate and fluid velocity. In cases where the flow rate is relatively low within a large-diameter pipe, using a reduced-bore installation is often more appropriate than installing a meter that matches the full pipe diameter.
Focusing only on the purchase price while ignoring the energy costs associated with pressure loss. For high-resistance flowmeters-such as orifice plates or target-type meters-the long-term energy costs often exceed the initial price difference, especially in large-diameter applications or processes involving continuous operation.
Overlooking fluid conductivity when selecting an electromagnetic flowmeter. Electromagnetic flowmeters are unsuitable for oils, gases, or pure water; installing one in such applications will typically result in either no display or erratic, fluctuating readings.
Failing to implement temperature and pressure compensation for steam. Since steam density varies significantly with temperature and pressure, relying solely on volumetric flow measurement can lead to errors exceeding 10%. Saturated steam typically requires pressure compensation, while superheated steam requires both temperature and pressure compensation.
Neglecting factors like vibration, straight-pipe run requirements, and material compatibility. These details are frequently omitted from selection specifications, yet they directly determine the accuracy and service life of the installed equipment. Furthermore, material compatibility checks must extend to liners, electrodes, and seals.
IX. Conclusion and Selection Checklist
There is no single "best" flowmeter-only the one that is "most suitable" for the application. By systematically reviewing five key factors-intended use, fluid medium, flow rate, installation requirements, and cost-most selection dilemmas can be easily resolved. Before drafting your equipment selection specifications, you can use the following checklist to ensure all necessary details are covered:
 Purpose and accuracy class: Is it for process control, internal performance assessment, or custody transfer (trade settlement)? What is the permissible margin of error?
 Fluid characteristics: Phase (liquid/gas/solid), electrical conductivity, viscosity, solids content, corrosivity, and hygienic requirements.
 Flow rate range: Specify the typical, minimum, and maximum flow rates.
 Allowable pressure drop and annual operating hours: Used to calculate energy consumption costs.
 Piping conditions: Pipe diameter, material, upstream/downstream flow obstructions, and available straight-pipe run lengths.
 Operating parameters: Working temperature, working pressure, presence of entrained gas, and flow pulsation.
 Installation environment: Vibration levels, hazardous area classification, and required ingress protection (IP) rating.
 Maintenance capabilities: Availability of on-site facilities for periodic verification, calibration, and spare parts replacement.
Once the checklist is complete, the final step is to weigh factors such as accuracy, turndown ratio, and cost to select the most suitable equipment type. If you are unsure, provide this checklist-along with details about your site conditions-to the manufacturer. They can offer specific recommendations for the model and pipe size, which is far more reliable than trying to guess among a multitude of options yourself.
