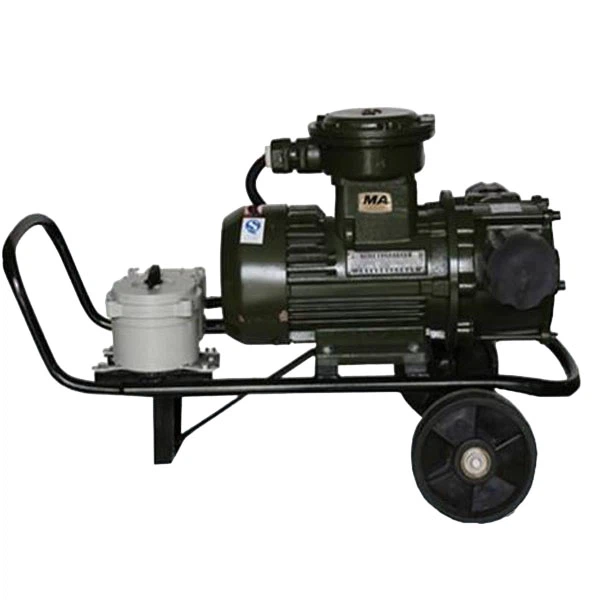

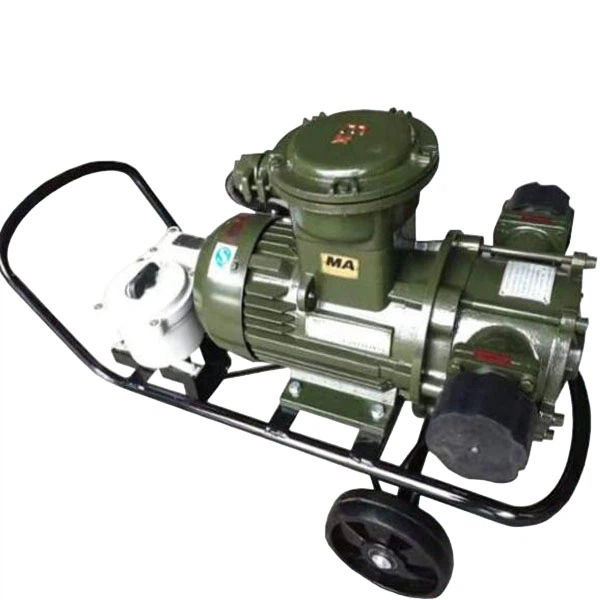

Mobile Vane Pump
HPB sliding mobile vane pump is a positive displacement pump with a temperature range of -40°C to 80°C and is suitable for transporting light oil products such as gasoline, diesel, and kerosene. The main features of the sliding vane pump are stable performance, large flow rate, simple structure, convenient maintenance and movable work. Widely used in gas stations, oil depots, docks, airports and other places, it is a good power equipment for supplying and unloading oil.
Description
HPB sliding mobile vane pump is a positive displacement pump with a temperature range of -40°C to 80°C and is suitable for transporting light oil products such as gasoline, diesel, and kerosene. The main features of the sliding vane pump are stable performance, large flow rate, simple structure, convenient maintenance and movable work. Widely used in gas stations, oil depots, docks, airports and other places, it is a good power equipment for supplying and unloading oil (not suitable for pumping water).
HPB series sliding vane pumps are mounted in slotted rotors which are eccentrically mounted in the pump body. When the rotor rotates, the sliding vane slides out from the rotor and slides close to the surface of the pump body. The cavity formed by the rotor, the sliding vane and the pump body changes periodically with the rotation of the rotor—the cavity increases. Inhale the medium when it is large, and discharge the medium when the cavity becomes small, and repeat the same process to complete the conveying process of the medium.
Spec
Product name: mobile vane pump
Voltage: 220v/380v
Material: cast iron material
Medium：Diesel/gasoline/methanol/kerosene
|
Model |
Performance |
Motor |
||||
|
Flow m |
Lift m |
Suction m |
Diameter m |
Voltage |
Power kw |
|
|
HPB-19K |
3.6 |
20 |
7 |
19 |
220V |
0.75 |
|
25HPB-4.5K1 |
4.5 |
20 |
7 |
25 |
220V |
1.1 |
|
32HPB-7.5K |
7.5 |
20 |
7 |
32 |
220V |
1.1 |
|
25HPB-10 |
10 |
20 |
7 |
25 |
380V |
1.1 |
|
25HPB-10K |
10 |
20 |
7 |
25 |
380V |
1.1 |
|
38HPB-15 |
15 |
20 |
7 |
38 |
380V |
1.1 |
|
38HPB-15K |
15 |
20 |
7 |
38 |
380V |
1.1 |
|
50HPB-20 |
20 |
20 |
7 |
50 |
380V |
1.5 |
|
50HPB-20K |
20 |
20 |
7 |
50 |
380V |
1.5 |
|
80HPB-40 |
40 |
25 |
7 |
80 |
380V |
4 |
