What is a Supported Boom Arm, and when is it needed?

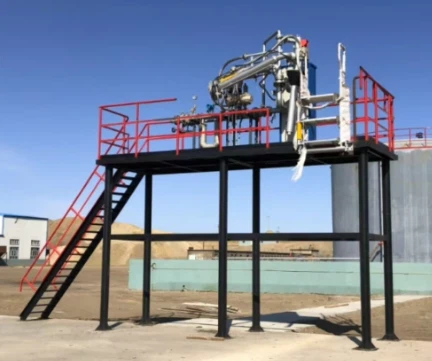

Supported Boom Arm is a type of loading arm that uses a structural support, such as a fixed post, column, or another external support system, to bear the weight and handle the movement of the arm during loading and unloading operations. It typically consists of a boom that is supported at one or more points along its length to allow for more stability, especially when dealing with heavy or large products.
When is a Supported Boom Arm Needed?
Heavy or Large Product Transfers:
When to Use: If the product being transferred is particularly heavy (e.g., thick liquids, chemicals, or fuels) or the arm needs to carry a heavy load (such as a large diameter pipe), a supported boom arm is essential to prevent excessive strain on the arm.
Why: The support reduces the load on the arm's joints and connections, preventing bending, sagging, or structural failure.
Longer Reach or Extended Operation:
When to Use: When the loading arm needs to cover a longer distance or reach farther out (for instance, when connecting to larger tank trucks or storage tanks), a supported boom arm helps manage the extra weight and movement.
Why: The external support provides stability to the longer boom, ensuring that it doesn't become unbalanced or difficult to control.
Frequent or Continuous Operations:
When to Use: In facilities where the loading arm is used frequently or in continuous operations, a supported boom arm can extend the arm's lifespan and reduce wear on the arm's internal support structure.
Why: The external support takes some of the operational load off, leading to less strain and more consistent performance.
Harsh Environmental Conditions:
When to Use: If the loading arm will be exposed to harsh conditions, such as extreme temperatures, heavy winds, or corrosive chemicals, a supported boom arm can enhance stability and prevent damage caused by these conditions.
Why: The support provides added stability against external forces, ensuring safe operation under challenging environmental conditions.
Safety and Compliance:
When to Use: In certain industries where safety standards and compliance regulations require the use of supported structures for heavier or more dangerous transfers (e.g., hazardous chemicals, fuels), a supported boom arm may be mandated.
Why: The support system ensures that the loading arm can handle high-pressure or hazardous materials safely, reducing the risk of accidents or spills.
Supported boom arm is necessary when there is a need to handle heavy loads, long reach, frequent use, or tough environmental conditions. It ensures stability, increases the operational lifespan of the equipment, and helps maintain safety during transfer operations.
